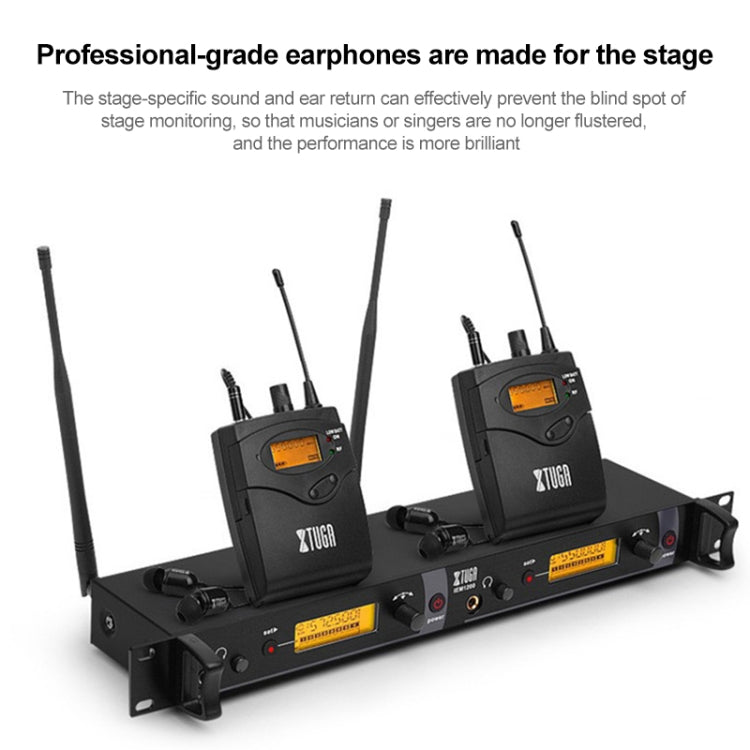

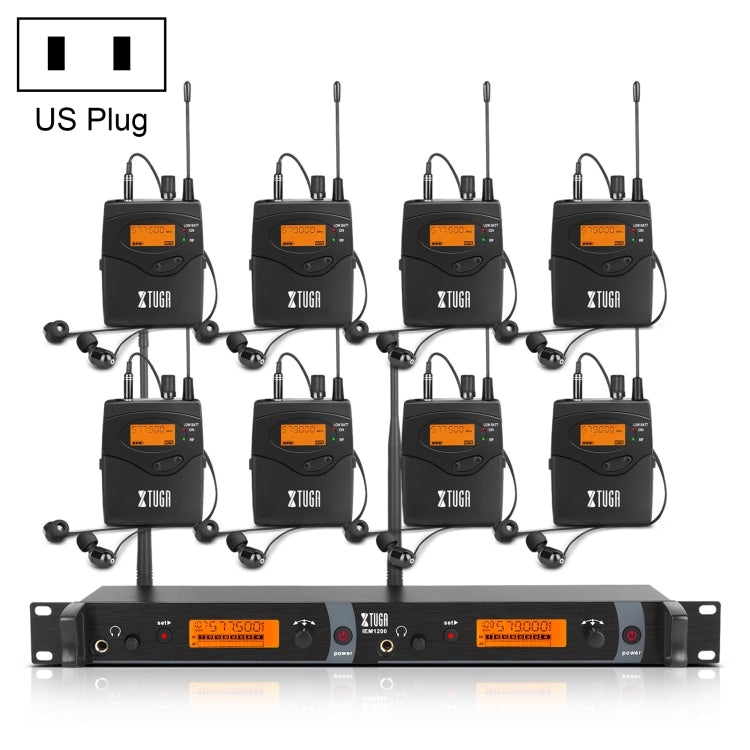

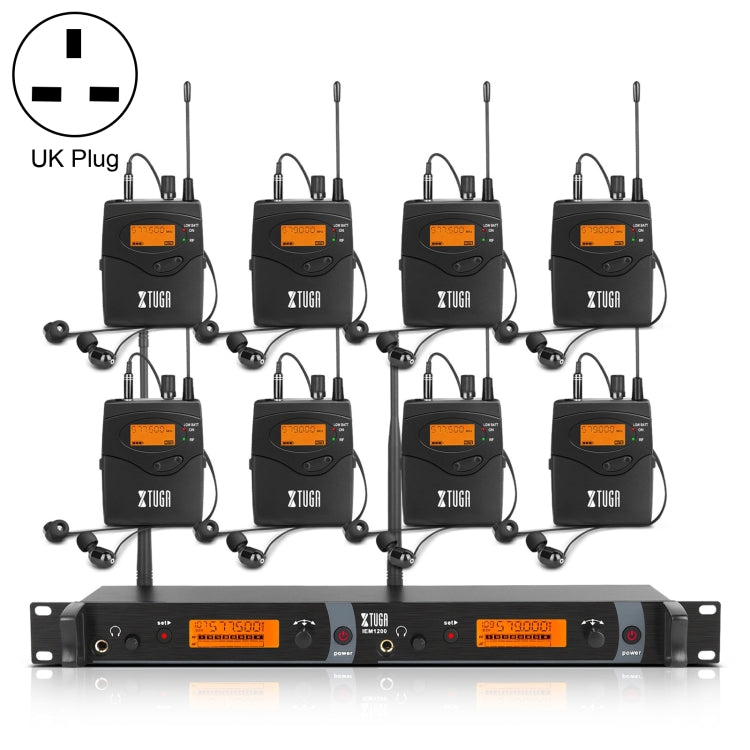

XTUGA IEM1200 Wireless Transmitter 8 Bodypack Stage Singer In-Ear Monitor System, Transmitter 8 Bodypack
£518.44
Regular price
£518.44
Sale price
£518.44
Regular price
Unit price
per
Tax included.
Couldn't load pickup availability
Features

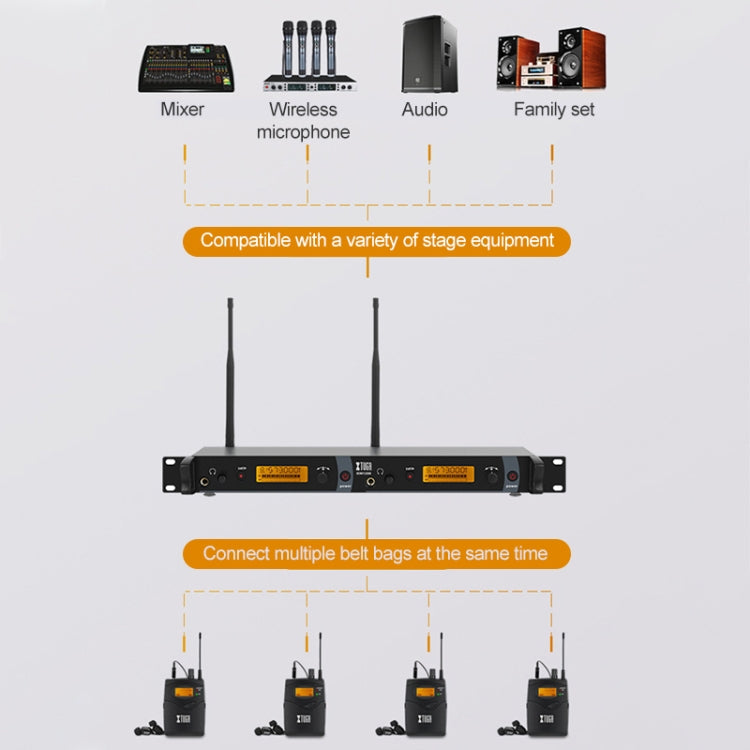

1. UHF wireless in-ear monitoring system.
2. A built-in limiter circuit for stage performances and a wide range of sounds eliminates distortion at excessive input levels.
3. Metal panel and body shell, makes it sturdy and durable
4. Provides desktop-level monitoring in an in-ear monitoring and receiving system with a wireless range from 80 to 100m, and a frequency range of 550-580MHz.
5. The signal-to-noise ratio of the dynamic range is improved, so that the system has excellent anti-interference ability, and once again shows the good original sound

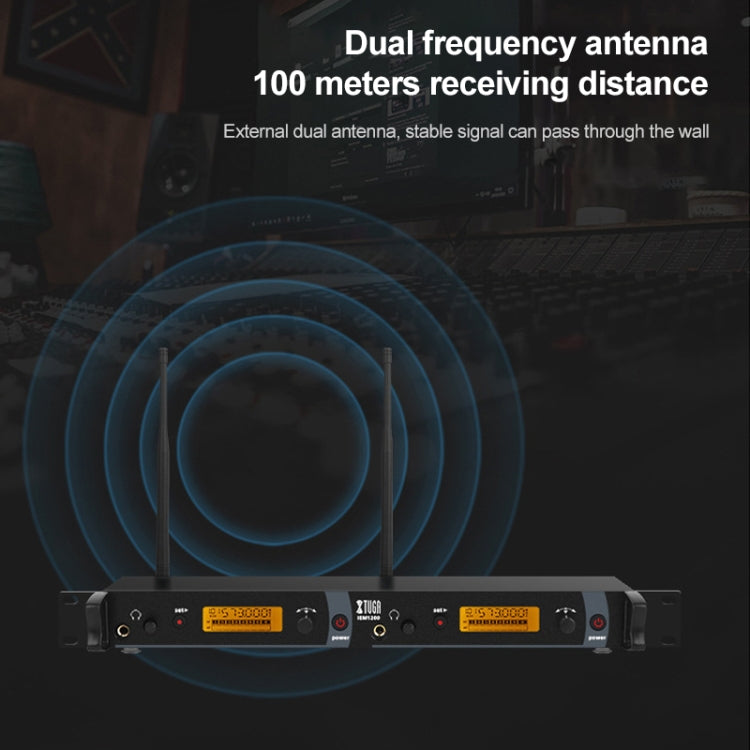

Transmitter Specifications
1. Case specification:Standard 1U Case
2. Material: Metal panel and body housing case
3. Frequency range: UHF550-580MHz
4. Frequency interval: 25MHz
5. Transmit output power:100mW(50 ohms)
6. Audio input: XLR & 6.3mm duplex outlet
7. Earphone output: 6.3mm jack, volume adjustable
8. Headphone load impedance: Greater than or equal to 16 ohms
9. Voltage current consumption: DC 12V 250mA
10. Antenna interface: TNC jack (50 ohms)
11. Size: 48 x 10.5 x 4.3cm

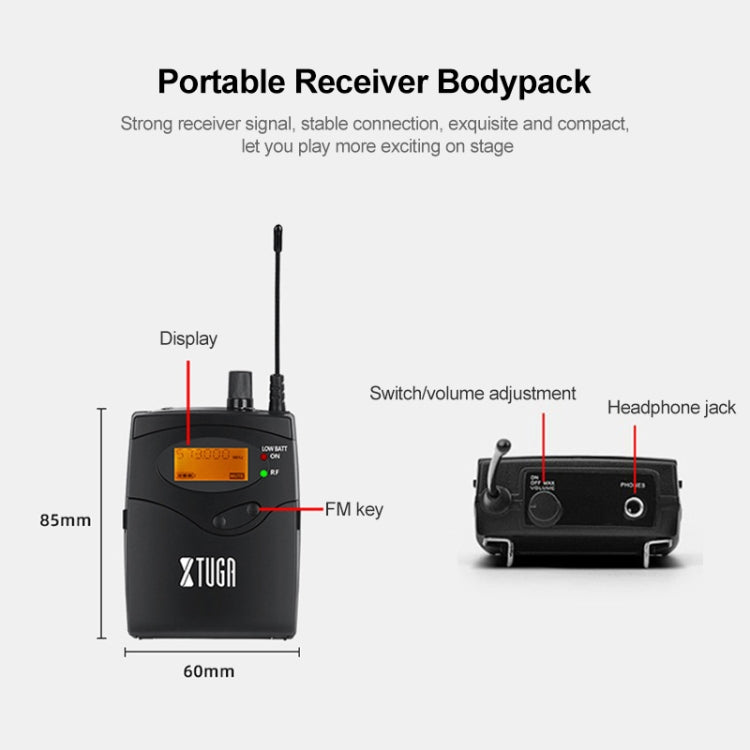

Receiver Specifications
1. Oscillation mode: PLL synthesized Frequency
2. Width Frequency range: UHF550-580MHz (Corresponding transmitter frequency)
3. Frequency interval: 25MHz
4. Operate mode: Manual adjust
5. Receiving mode: Single tuning.
6. Comprehensive Frequency Reaponse: 80Hz~15KHz+/-3dB
7. Output power (30 ohms): 2 x 35mW
8. Headphone load impedance: Greater than or equal to 16 ohms
9. Earphone output: 3.5mm jack
10. Power supply: 2 x AA batteries (not included)
11. Size: 8.5 x 6cm
1. UHF wireless in-ear monitoring system.
2. A built-in limiter circuit for stage performances and a wide range of sounds eliminates distortion at excessive input levels.
3. Metal panel and body shell, makes it sturdy and durable
4. Provides desktop-level monitoring in an in-ear monitoring and receiving system with a wireless range from 80 to 100m, and a frequency range of 550-580MHz.
5. The signal-to-noise ratio of the dynamic range is improved, so that the system has excellent anti-interference ability, and once again shows the good original sound
Transmitter Specifications
1. Case specification:Standard 1U Case
2. Material: Metal panel and body housing case
3. Frequency range: UHF550-580MHz
4. Frequency interval: 25MHz
5. Transmit output power:100mW(50 ohms)
6. Audio input: XLR & 6.3mm duplex outlet
7. Earphone output: 6.3mm jack, volume adjustable
8. Headphone load impedance: Greater than or equal to 16 ohms
9. Voltage current consumption: DC 12V 250mA
10. Antenna interface: TNC jack (50 ohms)
11. Size: 48 x 10.5 x 4.3cm
Receiver Specifications
1. Oscillation mode: PLL synthesized Frequency
2. Width Frequency range: UHF550-580MHz (Corresponding transmitter frequency)
3. Frequency interval: 25MHz
4. Operate mode: Manual adjust
5. Receiving mode: Single tuning.
6. Comprehensive Frequency Reaponse: 80Hz~15KHz+/-3dB
7. Output power (30 ohms): 2 x 35mW
8. Headphone load impedance: Greater than or equal to 16 ohms
9. Earphone output: 3.5mm jack
10. Power supply: 2 x AA batteries (not included)
11. Size: 8.5 x 6cm
Specification:
| Package Weight |
|
