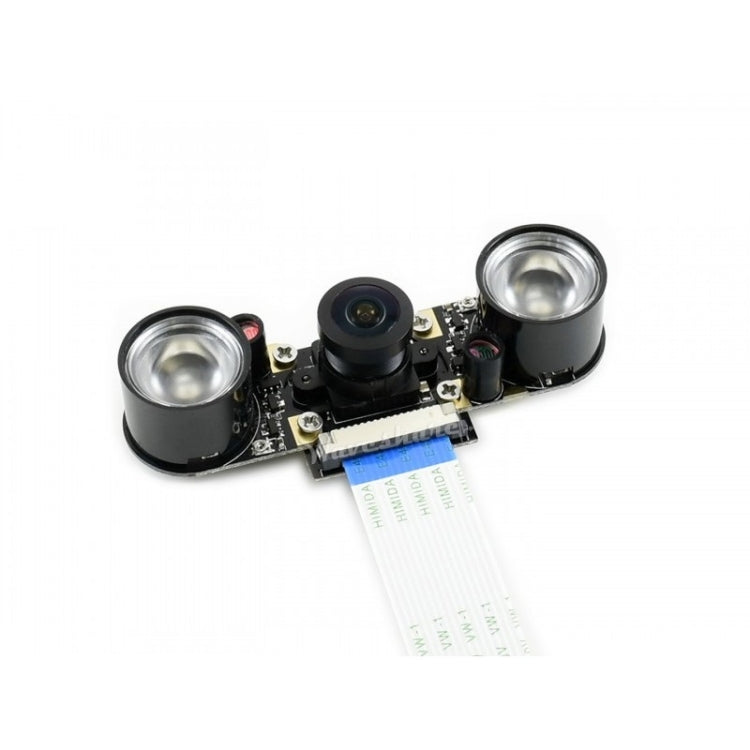

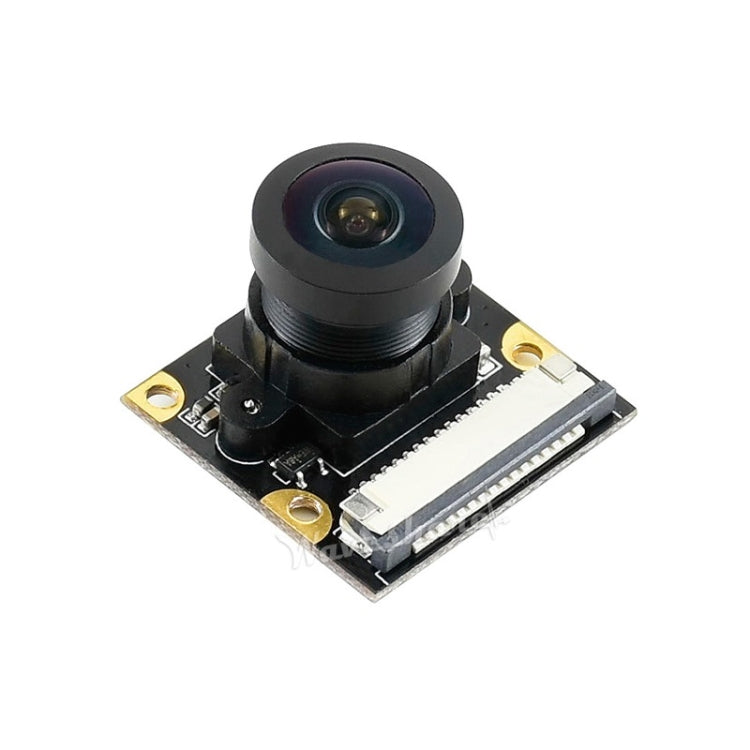

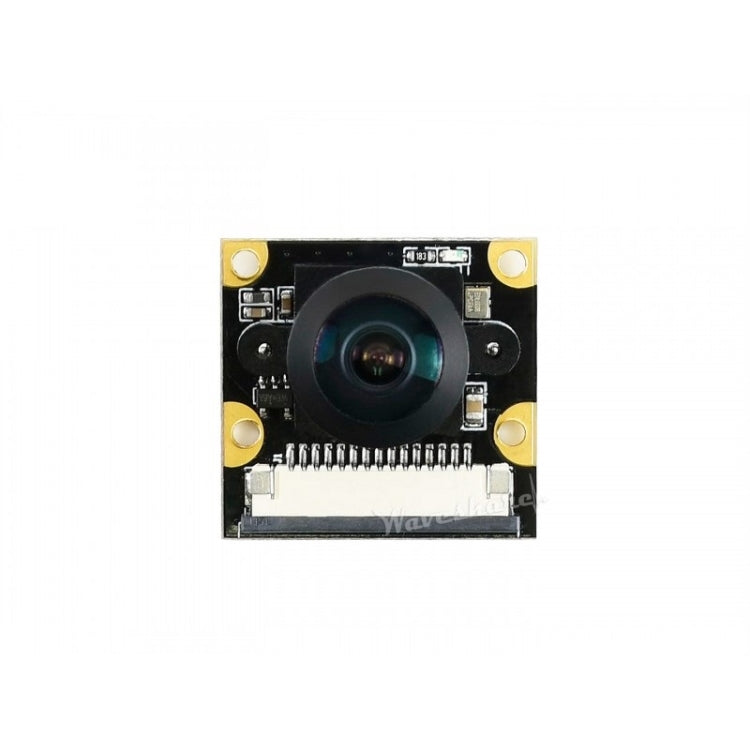

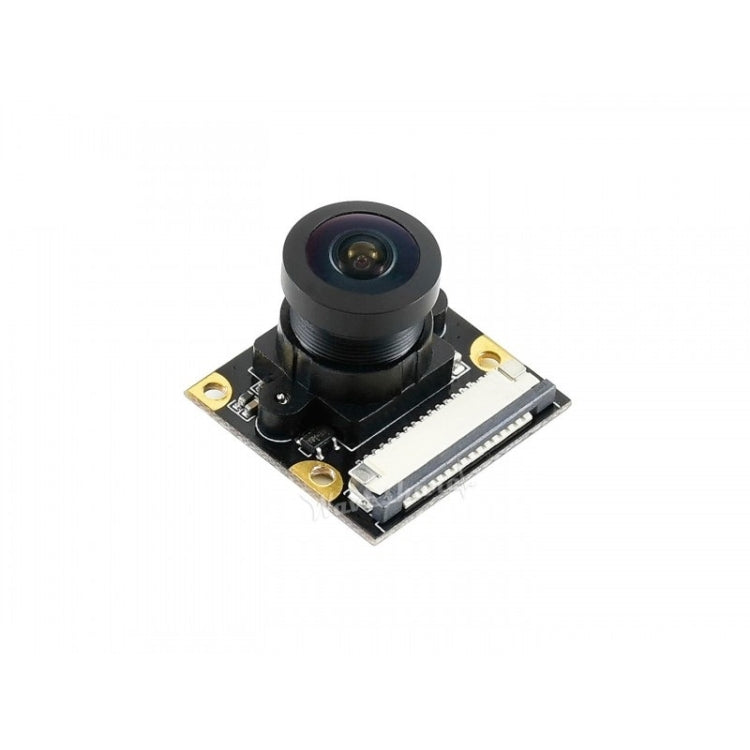

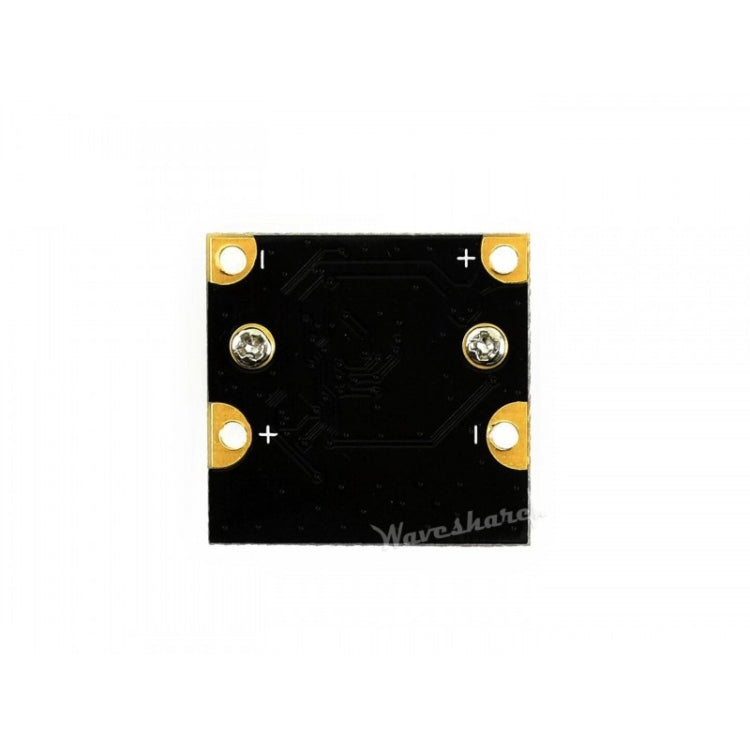

Waveshare IMX219-160IR 8MP 160 Degree FOV Infrared Camera, Applicable for Jetson Nano
£58.10
Regular price
£58.10
Sale price
£58.10
Regular price
Unit price
per
Tax included.
Couldn't load pickup availability
Features

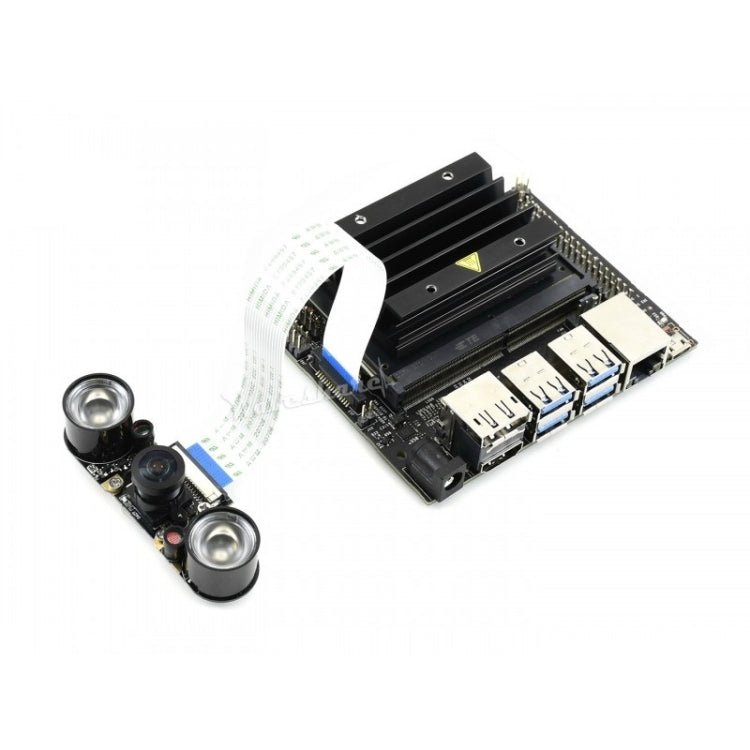

1. Supports NVIDIA Jetson Nano Developer Kit
2. Supports night vision when works with infrared LEDs
3. 8 Megapixels
4. Sensor: IMX219
5. Resolution: 3280 × 2464
6. Lens specifications:
- CMOS size: 1/4 inch
- Aperture (F): 2.35
- Focal Length: 3.15mm
- Angle of View (diagonal): 160 degree
- Distortion: <14.3%
7. 4 screw holes
8. Used for attachment
9. Provides 3.3V power output
10. Supports connecting infrared LED and/or fill flash LED
11. Dimension: 25mm x 24mm
12 . Weight: 31g
Packing List:
1. IMX219-160IR Camera x1

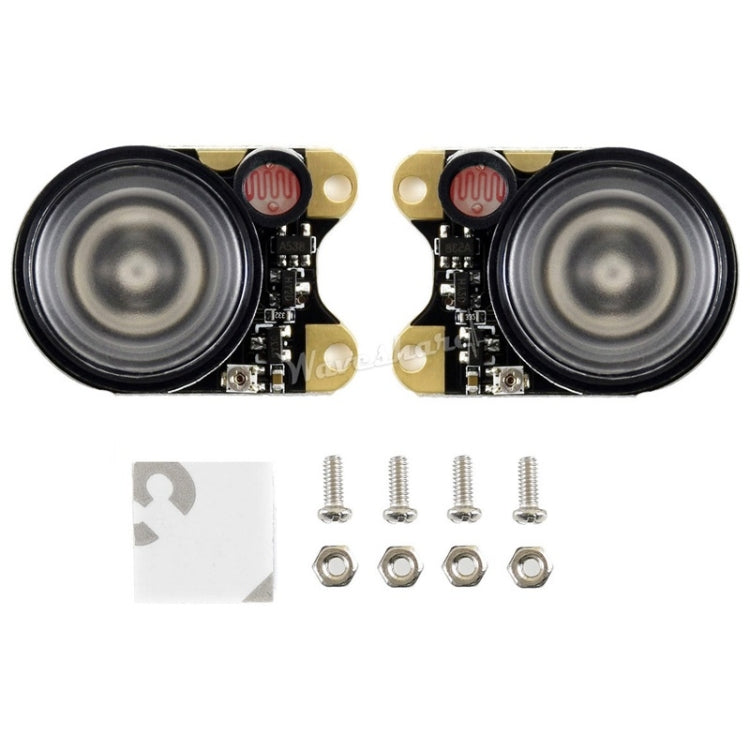

2. Infrared LED Board (B) 2PCS x1
3. 15-pin FFC (opposite sides contact) x1
1. Supports NVIDIA Jetson Nano Developer Kit
2. Supports night vision when works with infrared LEDs
3. 8 Megapixels
4. Sensor: IMX219
5. Resolution: 3280 × 2464
6. Lens specifications:
- CMOS size: 1/4 inch
- Aperture (F): 2.35
- Focal Length: 3.15mm
- Angle of View (diagonal): 160 degree
- Distortion: <14.3%
7. 4 screw holes
8. Used for attachment
9. Provides 3.3V power output
10. Supports connecting infrared LED and/or fill flash LED
11. Dimension: 25mm x 24mm
12 . Weight: 31g
Packing List:
1. IMX219-160IR Camera x1
2. Infrared LED Board (B) 2PCS x1
3. 15-pin FFC (opposite sides contact) x1
Specification:
