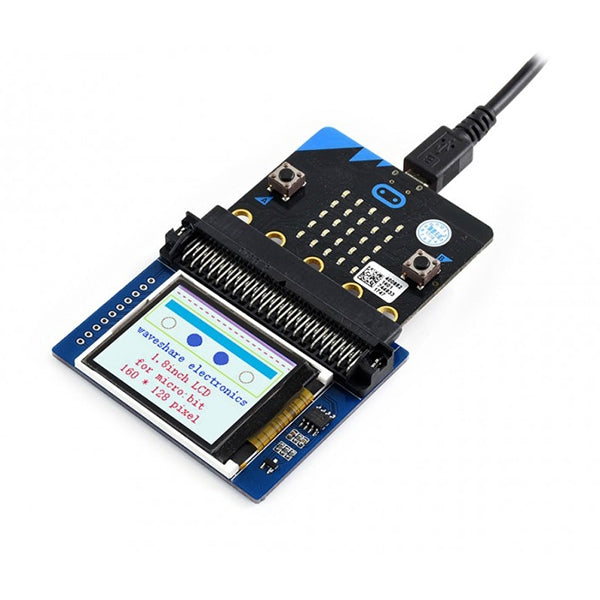

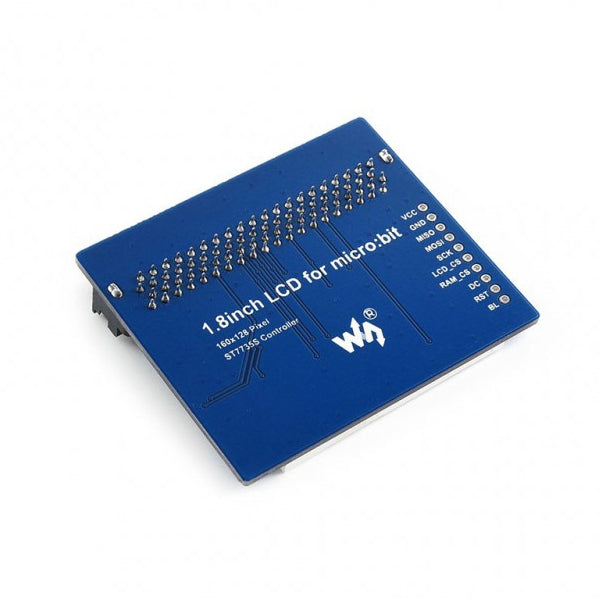

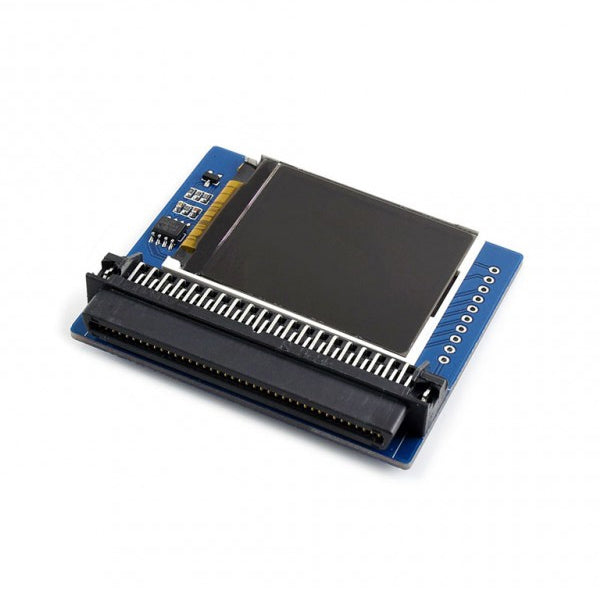

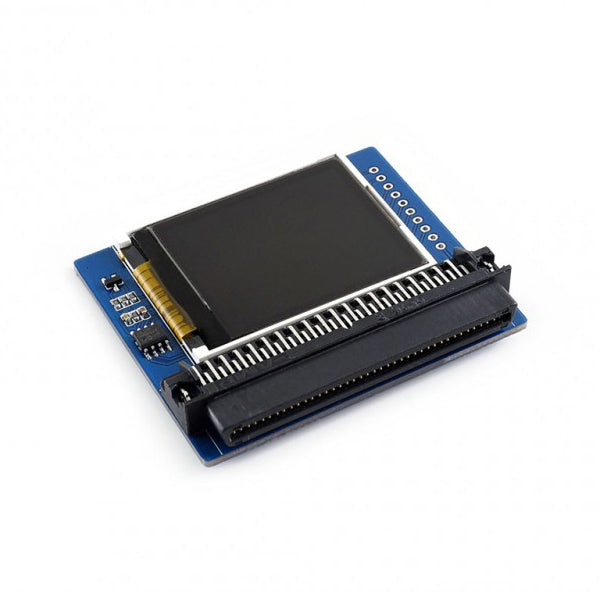

WAVESHARE 1.8inch 160x128 Colorful Display Module for Mmicro:Bit,65K Colors, 1.8 inch for Microbit
£34.85
Regular price
£34.85
Sale price
£34.85
Regular price
Unit price
per
Tax included.
Couldn't load pickup availability
1. micro:bit edge connector, directly pluggable
2. Embedded driver ST7735S, supports 65K colors
3. Onboard SRAM 23LC1024, used as display cache, no more out of memory
4. SPI interface, takes up only a few IO pins
5. Backlight adjustment via PWM
6. Reserved solder pads for control interface, make it easy to connect with Arduino/Nucleo boards
7. Driver: ST7735S
8. Resolution: 160x128
9. Color display: RGB, 65k colors
10. Operating voltage: 3.3 v
11. Dimension: 61 x 51.5mm
2. Embedded driver ST7735S, supports 65K colors
3. Onboard SRAM 23LC1024, used as display cache, no more out of memory
4. SPI interface, takes up only a few IO pins
5. Backlight adjustment via PWM
6. Reserved solder pads for control interface, make it easy to connect with Arduino/Nucleo boards
7. Driver: ST7735S
8. Resolution: 160x128
9. Color display: RGB, 65k colors
10. Operating voltage: 3.3 v
11. Dimension: 61 x 51.5mm
Specification:
| Package Weight |
|
