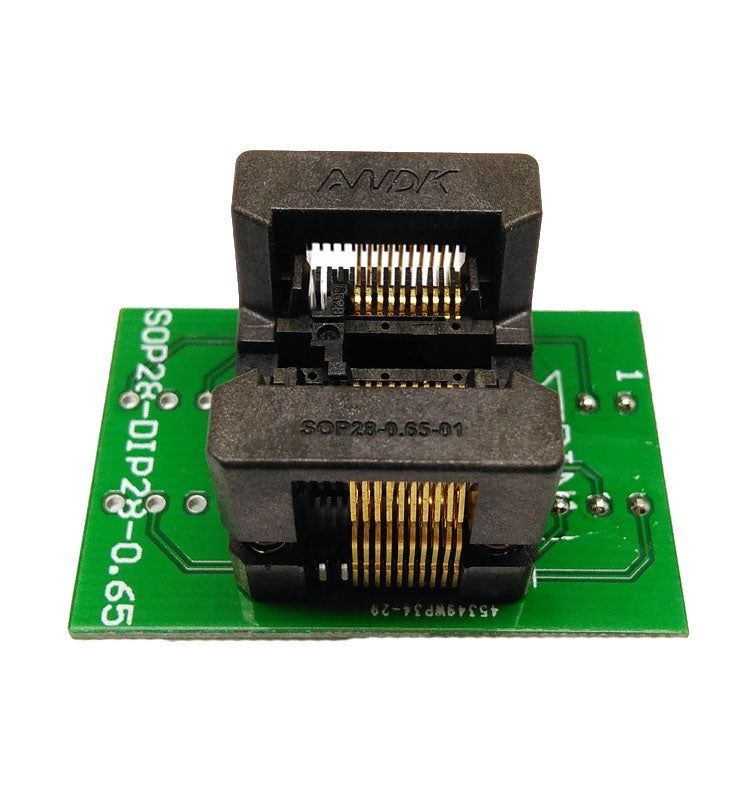

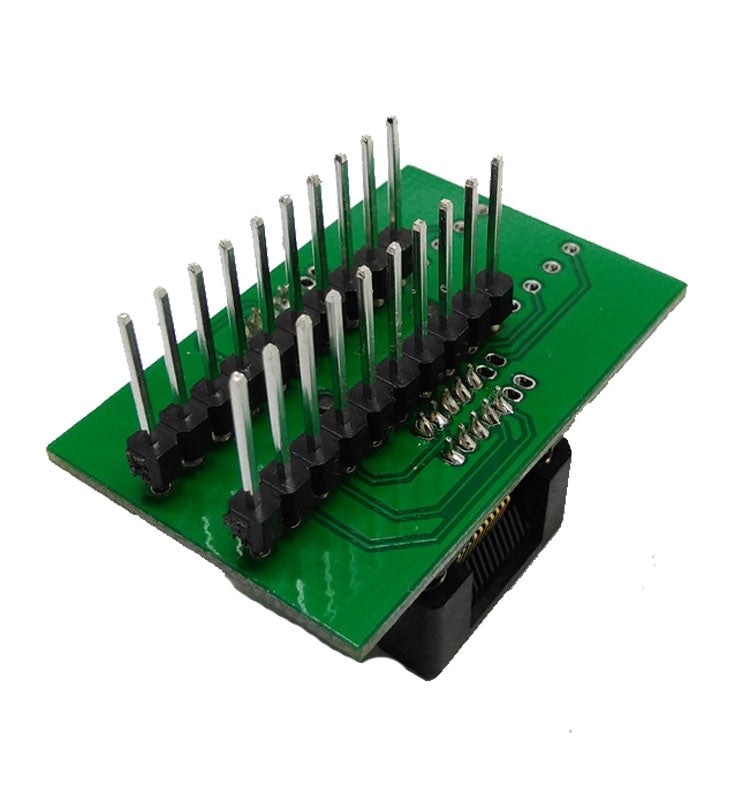

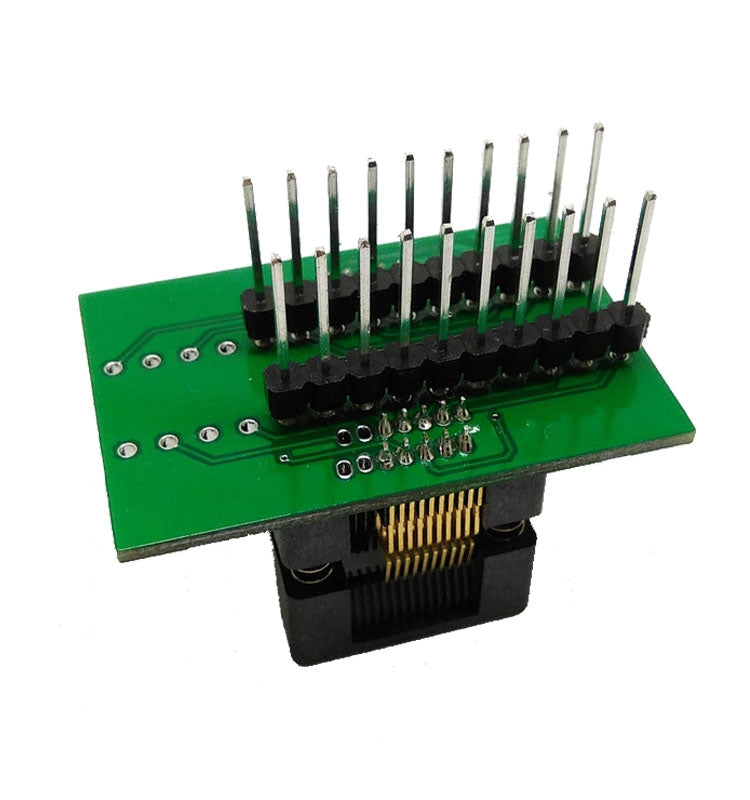

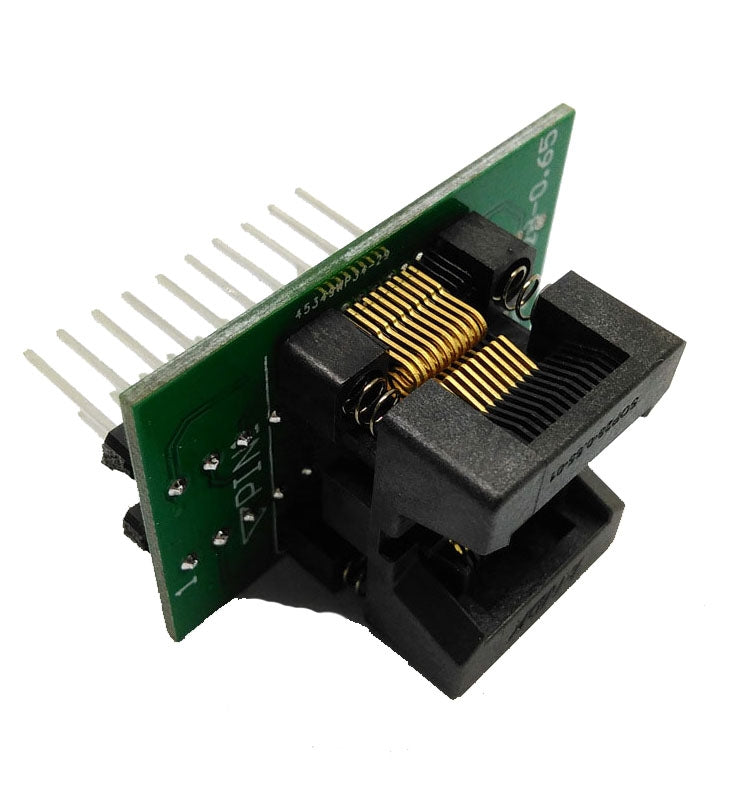

SSOP20 TSSOP20 OTS-28-0.65-01 Chip Gold-Plated Dual Contact Pin Adapter Socket

£13.92
£13.92
£13.92
Tax included.

1. Type: Test Block
2. Working frequency: High frequency
3. Application: Integrated Circuit IC
4. Contact impedance: Less than 25 milliohms
5. Production process: Injection molding
6. Features: Fire retardant/flame retardant
7. Contact material: Beryllium copper shrapnel
8. Insulator material: PEI, PPS
9. Number of cores: 20
10. Working temperature: -65～155 degrees Celsius
11. Lead spacing: 0.65mm
12. Service life: 20,000 times
13. Adaptation chip body width: 4.4mm

Features:
1. Using double contact technology, the contact is more stable
2. The seat shell is made of special engineering plastic, which has high strength and long life.
3. The shrapnel adopts imported beryllium copper material, which has low impedance and good elasticity
4. Thick gold plating layer, thick contact plating, ultra-low contact impedance, high reliability


Specification:
Package Weight
One Package Weight 0.02kgs / 0.05lb
One Package Size 15cm * 12cm * 6cm / 5.91inch * 4.72inch * 2.36inch
Qty per Carton 200
Carton Weight 5.00kgs / 11.02lb
Carton Size 52cm * 36cm * 37cm / 20.47inch * 14.17inch * 14.57inch
Loading Container 20GP: 385 cartons * 200 pcs = 77000 pcs
40HQ: 893 cartons * 200 pcs = 178600 pcs
