For Yamaha 2006-2009 SM04 Bicycle / Motorcycle Immo System Emulator Full Chips, Immo System Emulator Full Chips
£17.99
Regular price
£17.99
Sale price
£17.99
Regular price
Unit price
per
Tax included.
Couldn't load pickup availability
1. Compatible with all Yamaha motorcycles, bicycles and scooters from 2006 to 2009.
2. Easy to install, no programming is required, only wires need to be connected.
3. Completely imitate the work of conventional anti-theft systems, including the work of LEDs on the dashboard.
4. For simulator installations in conventional anti-theft systems:
- Remove the sealant from the immobilizer housing.
- Remove a PCB from the immobilizer and remove the wires from it.

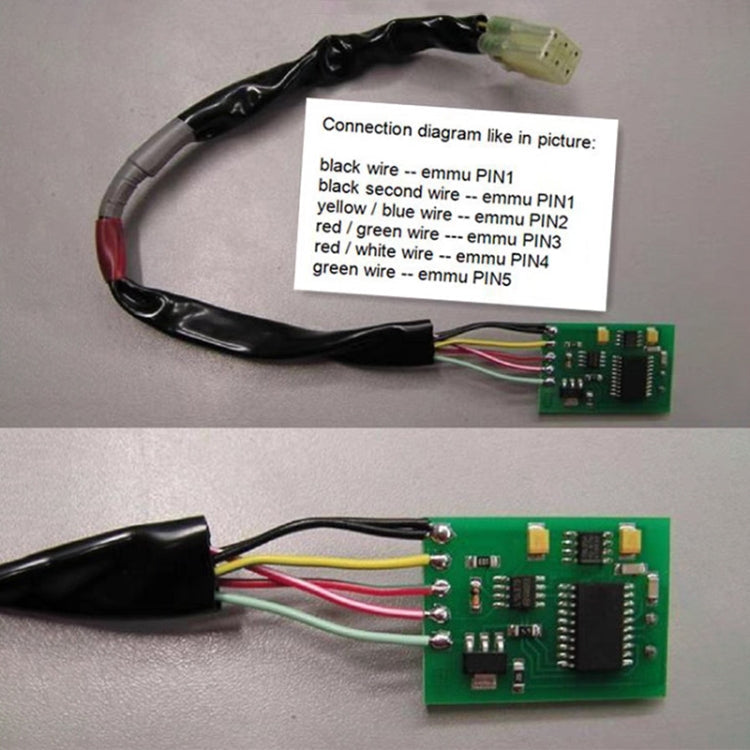

- Connect the simulator according to the drawing.
- Insert the simulator into the anti-theft system housing.
5. The color of the wire and its appointment:
- Black (2 pcs) for ground
- Red BATT (+12V)
- Yellow ignition (+12V)
- Gray LED (+5V)
- Blue K line anti-theft ECU
2. Easy to install, no programming is required, only wires need to be connected.
3. Completely imitate the work of conventional anti-theft systems, including the work of LEDs on the dashboard.
4. For simulator installations in conventional anti-theft systems:
- Remove the sealant from the immobilizer housing.
- Remove a PCB from the immobilizer and remove the wires from it.
- Connect the simulator according to the drawing.
- Insert the simulator into the anti-theft system housing.
5. The color of the wire and its appointment:
- Black (2 pcs) for ground
- Red BATT (+12V)
- Yellow ignition (+12V)
- Gray LED (+5V)
- Blue K line anti-theft ECU
Specification:
| Package Weight |
|
