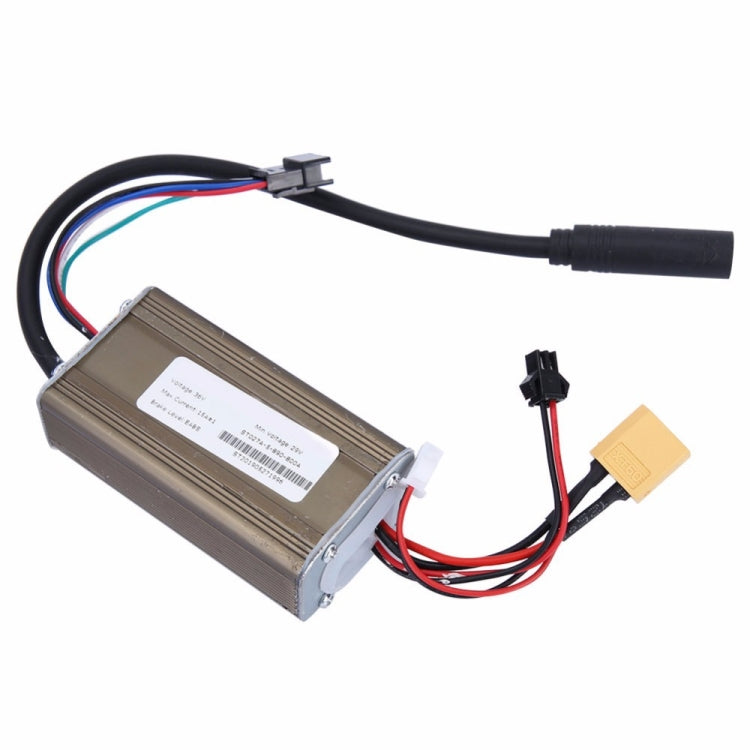

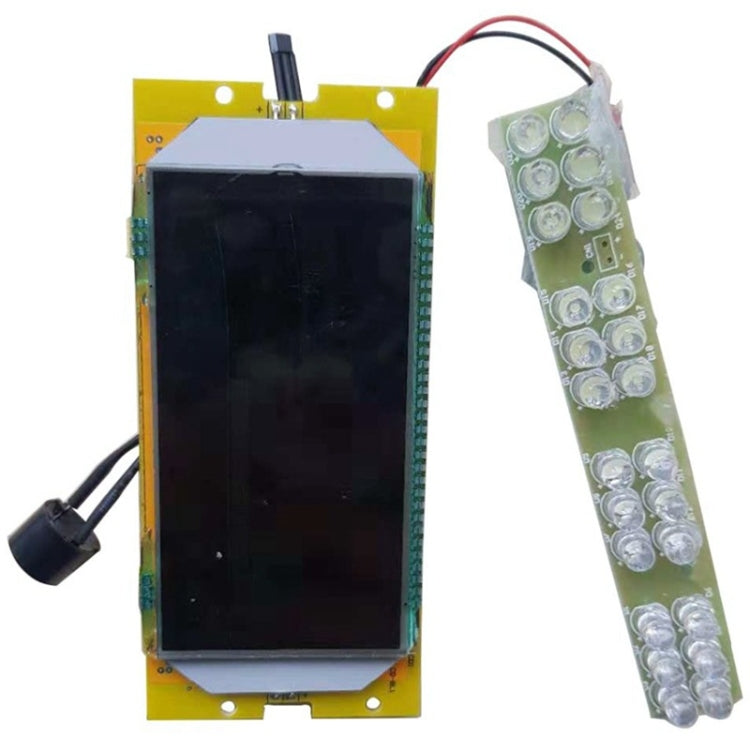

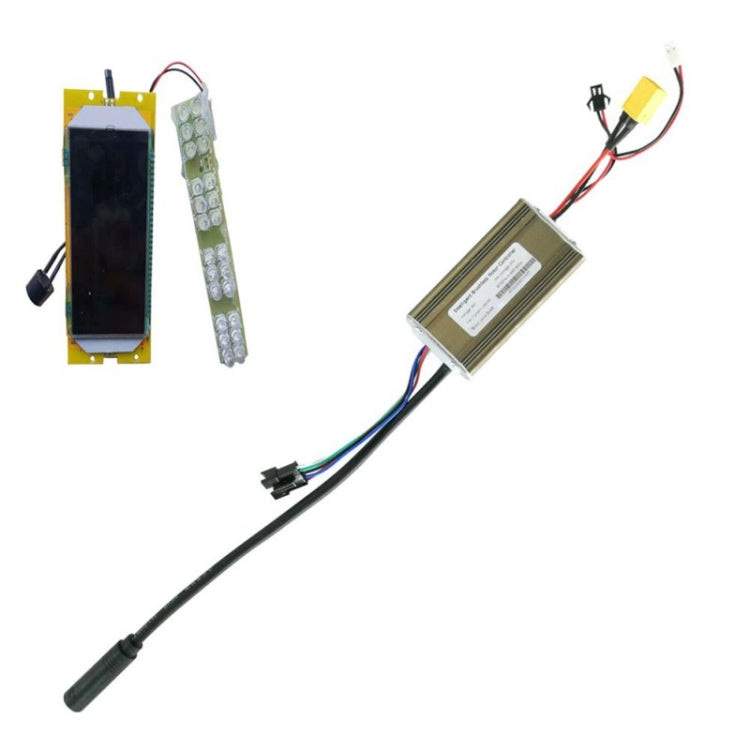

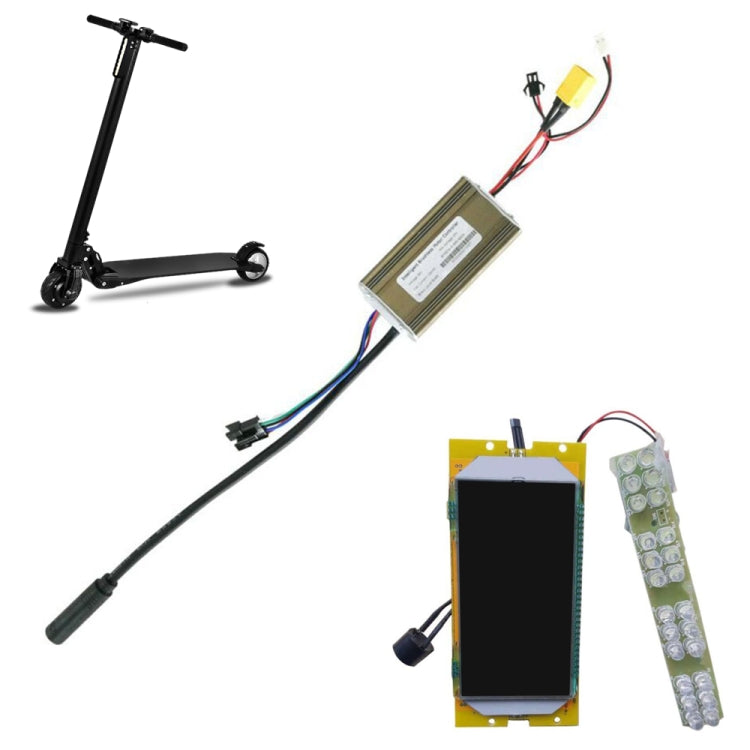

Electric Scooter LED Display Screen Main Control Board Replacement Accessories For Kugoo S1 / S2 / S3 Series, Controller+Display

Features:
1. Using high-performance 32-bit MCU
2. Protection function for abnormal conditions such as overvoltage, overcurrent, overheating, undervoltage, etc.
3. Cruise control
4. Adjustable speed limit
5. 3 gear mode switch
6. Double closed loop system, quiet operation, smooth cut in the secondary acceleration

parameter:
1. Vehicle speed limit: 35KM/H
2. Climbing angle: within 15 degrees
3. Drive motor torque: up to 35NMx22
4. Drive motor power: up to 350Wx2
5. Instantaneous power: up to 700W
6. Motor control mode: sine wave vector control, current + speed closed-loop control algorithm
7. Scope of application: suitable for replacement of motor controller components of 8-inch KUGOO S series and ETWOW scooter
