3.5 inch LCD TFT Touchscreen Display Touch Shield with Stylus Pen for Raspberry Pi

£25.55
£25.55
£25.55
Tax included.
About the Product
This 3.5 inch touch screen module is designed especially for Raspberry Pi, using the latest Linux Core system (vision 3.18.9), the latest Raspberry Pi official UI desktop file system and the fastest SPI transmission data, an ideal alternative solution for HDMI monitor and convenient Men-Machine interface for Raspberry Pi, combined with the portable power, DIY anywhere anytime.

Features
1. LCD Interface: SPI.
2. Touch Screen Controller: XPT2046.
3. Backlight: LED.
4. LCD Type: TFT.
5. Resolution: 320*480 DOTS.
6. Core System: vision 3.18.9.
7. SPI Speed: 32MHz.
8. Color Levels Index: 65536.
9. Power Consumption/Backlight Current: TBD.
10. Supports Raspbian system, enables your system to:
- Play videos (supports multi formats, MP4 and so on).
- Take photos by touching (up to 17 camera modes).
- Support software keyboard (system interaction without keyboard/mouse).
- Support driver is installed automatically.


Specification:
General
Model C0278

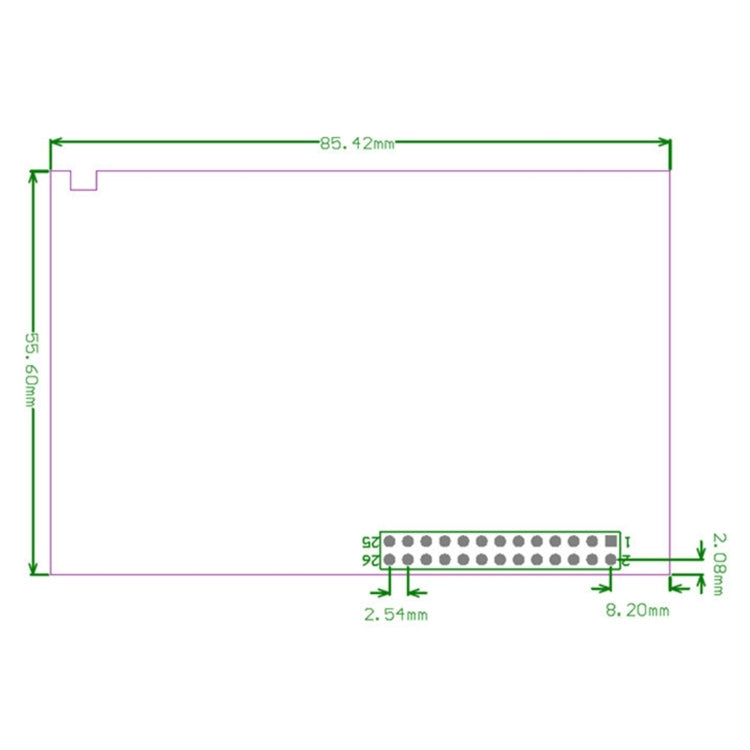

Size 8.6*5.6*2cm
Weight 51g
LCD Interface SPI
Touch Screen Controller XPT2046
LCD Type TFT
Resolution 320*480 DOTS
Core System Vision 3.18.9
SPI Speed 32MHz
Power Consumption/Backlight Current TBD
Package Include
Package Contents 1 x LCD Touchscreen
1 x Stylus Pen
Package Weight
One Package Weight 0.09kgs / 0.20lb
One Package Size 12cm * 7cm * 3.5cm / 4.72inch * 2.76inch * 1.38inch
Qty per Carton 100
Carton Weight 8.70kgs / 19.18lb
Carton Size 37cm * 37cm * 26cm / 14.57inch * 14.57inch * 10.24inch
Loading Container 20GP: 749 cartons * 100 pcs = 74900 pcs
40HQ: 1739 cartons * 100 pcs = 173900 pcs
