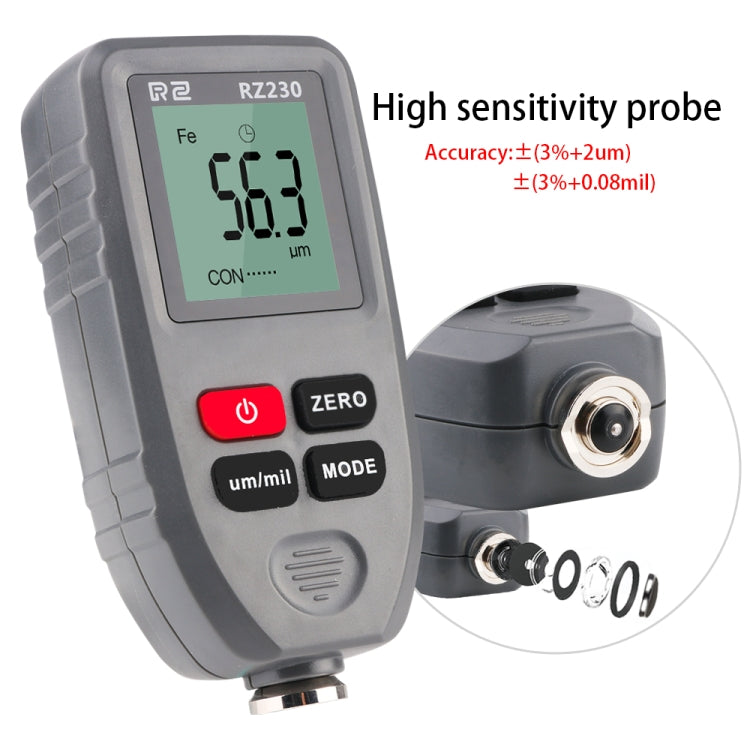

RZ230 Other measuring instruments 0~1300μm Convenient / Measure / Pro, RZ230
£137.15
Regular price
£137.15
Sale price
£137.15
Regular price
Unit price
per
Tax included.
Couldn't load pickup availability
RZ230 Paint Film Meter Tester Coating Measure Thickness Gauge Digital Portable Mini Thickness Gauge Tester
Introductions:
The thickness gauge is used to measure the thickness of the plated and coatedsheeton metal, e.g. paint/enamel/ chrome on steel, paint and anodizing coating on aluminum/copper.
The gauge takes the precision integrated probe, and uses principles of electro-magnetic inductionand the eddy current effect, which automatically detects the attributeof substrates.
Application Field:
The Gauge is designed for non-destructively measuring the thickness of coating and painting. It is essential for material surface treatment and widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in the laboratory, workshop and outdoor.
Operating Principle:
Thegauge adopts the principle of electromagnetic induction and eddy current effect.It has F probe and N probe.
F probe works on the magnetic induction principle and should be used for detecting the non-magnetic coating’s thickness such as chrome/copper/zinc/varnish/rubber on the iron/steel substrate.
N probe works on the eddy current principle and should be used for detecting the insulating coating’s thickness such as paint/anodizing/ceramics on the aluminum/copper/brass substrate.
Introductions:
The thickness gauge is used to measure the thickness of the plated and coatedsheeton metal, e.g. paint/enamel/ chrome on steel, paint and anodizing coating on aluminum/copper.
The gauge takes the precision integrated probe, and uses principles of electro-magnetic inductionand the eddy current effect, which automatically detects the attributeof substrates.
Application Field:
The Gauge is designed for non-destructively measuring the thickness of coating and painting. It is essential for material surface treatment and widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in the laboratory, workshop and outdoor.
Operating Principle:
Thegauge adopts the principle of electromagnetic induction and eddy current effect.It has F probe and N probe.
F probe works on the magnetic induction principle and should be used for detecting the non-magnetic coating’s thickness such as chrome/copper/zinc/varnish/rubber on the iron/steel substrate.
N probe works on the eddy current principle and should be used for detecting the insulating coating’s thickness such as paint/anodizing/ceramics on the aluminum/copper/brass substrate.
Specification:
| Package Weight |
|
